GH080 Through Bore Slip Ring

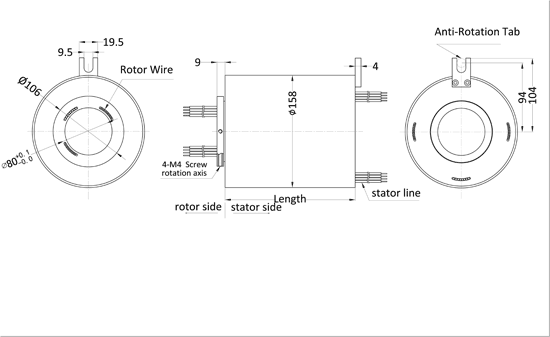

Download CenterSlip RingsGH080 standard through bore slip ring with bore size80mm
OD 158 mmAll aluminum alloy structure integral precision conductive slip ring to support the signal(2A)
10A, multiplying power *10A,voltage250VAC/VDC. bore size 80mm,OD: 158mm
High precision rotation, more stable and longer life compare with other congeneric product
Contact materials using precious metals+Gold-plated superhard processing，small torque，steady running ，long life ,Small fluctuations in resistance, small contact resistance
Ensure excellent transmission performance, typical applications include automation equipment camera haeundae robot working rotary table.
| model# | total rings | current | model # | total rings | current |
|---|---|---|---|---|---|
| GH08002-0200 | 2rings | 2X10A | GH08002-0002 | 2rings | 2Xsignal(2A) |
| GH08003-0300 | 3rings | 3X10A | GH08003-0003 | 3rings | 3Xsignal(2A) |
| GH08003-0102 | 3rings | 1X10A+2Xsignal(2A) | GH08003-0201 | 3rings | 2X10A+1signal(2A) |
| GH08006-0600 | 6rings | 6X10A | GH08006-0006 | 6rings | 6Xsignal(2A) |
| GH08006-0204 | 6rings | 2X10A+4Xsignal(2A) | GH08006-0402 | 6rings | 4X10A+2Xsignal(2A) |
| GH08012-1200 | 12rings | 12X10A | GH08012-0012 | 12rings | 12Xsignal(2A) |
| GH08012-0210 | 12rings | 2X10A+10Xsignal(2A) | GH08012-0408 | 12rings | 4X10A+8Xsignal(2A) |
| GH08012-0606 | 12rings | 6X10A+6Xsignal(2A) | GH08012-0804 | 12rings | 8X10A+4Xsignal(2A) |
| GH08012-1002 | 12rings | 10X10A+2Xsignal(2A) | GH07018-1800 | 18rings | 18X10A |
| GH08018-0018 | 18rings | 18Xsignal(2A) | GH08018-0216 | 18rings | 18X10A+16X(signal)2A |
| GH08018-0414 | 18rings | 4X10A+14X(signal)2A | GH08018-0612 | 18rings | 6X10A+12X(signal)2A |
| GH08018-0810 | 18rings | 8X10A+10X(signal)2A | GH08018-1008 | 18rings | 10X10A+8X(signal)2A |
| GH08018-1206 | 18rings | 12X10A+06X(signal)2A | GH08018-1404 | 18rings | 14X10A+4X(signal)2A |
| GH08018-1602 | 18rings | 16X10A+2X(signal)2A | GH08024-2400 | 24rings | 24X10A |
| GH08024-0024 | 18rings | 24X(signal)2A | GH08024-0618 | 24rings | 6X10A+18X(signal)2A |
| GH08024-1212 | 18rings | 12X10A+12X(signal)2A | GH08024-1806 | 24rings | 18X10A+6X(signal)2A |
| GH08036-3600 | 36rings | 36X10A | GH08036-0036 | 236rings | 36X(signal)2A |
| GH08036-0630 | 36rings | 6X10A+30X(signal)2A | GH08036-1224 | 36rings | 12X10A+24X(signal)2A |
| GH08036-1818 | 36rings | 18X10A+18X(signal)2A | GH08036-2412 | 36rings | 24X10A+12X(signal)2A |
| GH08036-3006 | 36rings | 30X10A+6X(signal)2A | GH08042-4200 | 42rings | 42X10A |
| GH08042-0042 | 42rings | 42X(signal)2A | GH08042-0636 | 42rings | 6X10A+36X(signal)2A |
| GH08042-1230 | 42rings | 12X10A+30X(signal)2A | GH08042-1824 | 42rings | 18X10A+24X(signal)2A |
| GH08042-2418 | 42rings | 24X10A+18X(signal)2A | GH08042-3012 | 42rings | 30X10A+12X(signal)2A |
| GH08042-3606 | 42rings | 36X10A+6X(signal)2A | GH08048-4800 | 48rings | 48X10A |
| GH08048-0048 | 48rings | 48X(signal)2A | GH08048-0642 | 48rings | 6X10A+42X(signal)2A |
| GH08048-0642 | 48rings | 6X10A+42X(signal)2A | GH08048-1236 | 48rings | 12X10A+36X(signal)2A |
| GH08048-1236 | 48rings | 12X10A+36X(signal)2A | GH08048-1830 | 48rings | 18X10A+30X(signal)2A |
| GH08048-2424 | 48rings | 24X10A+24X(signal)2A | GH08048-3018 | 48rings | 30X10A+18X(signal)2A |
| GH08056-5600 | 56rings | 56X10A | GH08056-0056 | 56rings | 56X(signal)2A |
| GH08056-0650 | 56rings | 6X10A+50X(signal)2A | GH08056-1244 | 56rings | 12X10A+44X(signal)2A |
| GH08056-1838 | 56rings | 18X10A+38X(signal)2A | GH08056-2432 | 56rings | 24X10A+32X(signal)2A |
| GH08056-3620 | 56rings | 36X10A+20X(signal)2A | GH08056-4808 | 56rings | 48X10A+8X(signal)2A |
| GH08072-7200 | 72rings | 72X(signal)2A | GH08072-0072 | 72rings | 72X(signal)2A |
| GH08072-1260 | 72rings | 12X10A+60X(signal)2A | GH08072-2448 | 72rings | 24X10A+48X(signal)2A |
| GH08072-3042 | 72rings | 30X10A+42X(signal)2A | GH08072-3636 | 72rings | 36X10A+36X(signal)2A |
| GH08072-4824 | 72rings | 48X10A+24X(signal)2A | GH08072-3636 | 72rings | 36X10A+36X(signal)2A |
| GH08072-6012 | 72rings | 60X10A+12X(signal)2A | GH08072-9600 | 96rings | 96X10A |
| GH08096-0096 | 96rings | 96X(signal)2A | GH08096-1284 | 96rings | |
| GH07096-2472 | 96rings | 24X10A+72X(signal)2A | GH08096-3660 | 96rings | 36X10A+60X(signal)2A |
| GH080096-4848 | 96rings | 48X10A+48X(signal)2A | GH08096-6036 | 96rings | 60X10A+36X(signal)2A |
| GH08096-7224 | 96rings | 72X10A+24X(signal)2A |
