GH050through bore slip ring

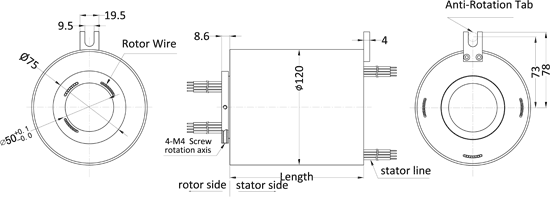

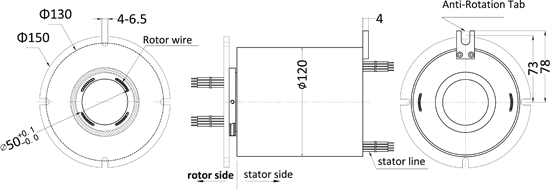

Download CenterSlip RingsGH050standard through bore slip ring with bore size50.8mm
OD 120 mmAll aluminum alloy structure integral precision conductive slip ring to support the signal(2A)
10A, multiplying power *10A,voltage250VAC/VDC. bore size 50mm,OD: 120mm
High precision rotation, more stable and longer life compare with other congeneric product
Contact materials using precious metals+Gold-plated superhard processing£¬small torque£¬steady running £¬long life ,Small fluctuations in resistance, small contact resistance
Ensure excellent transmission performance, typical applications include automation equipment camera haeundae robot working rotary table.
| model# | total rings | current | nodel# | total rings | current |
|---|---|---|---|---|---|
| GH05002-0200 | 2rings | 2X10A | GH05002-0002 | 2rings | 2Xsignal(2A) |
| GH05003-0300 | 3rings | 3X10A | GH05003-0003 | 3rings | 3Xsignal(2A) |
| GH05003-0102 | 3rings | 1X10A+2Xsignal(2A) | GH05003-0201 | 3rings | 2X10A+1signal(2A) |
| GH05006-0600 | 6rings | 6X10A | GH05006-0006 | 6rings | 6Xsignal(2A) |
| GH05006-0204 | 6rings | 2X10A+4Xsignal(2A) | GH05006-0402 | 6rings | 4X10A+2Xsignal(2A) |
| GH05012-1200 | 12rings | 12X10A | GH05012-0012 | 12rings | 12Xsignal(2A) |
| GH05012-0210 | 12rings | 2X10A+10Xsignal(2A) | GH05012-0408 | 12rings | 4X10A+8Xsignal(2A) |
| GH05012-0606 | 12rings | 6X10A+6Xsignal(2A) | GH05012-0804 | 12rings | 8X10A+4Xsignal(2A) |
| GH05012-1002 | 12rings | 10X10A+2Xsignal(2A) | GH05018-1800 | 18rings | 18X10A |
| GH05018-0018 | 18rings | 18Xsignal(2A) | GH05018-0216 | 18rings | 18X10A+16X(signal)2A |
| GH05018-0414 | 18rings | 4X10A+14X(signal)2A | GH05018-0612 | 18rings | 6X10A+12X(signal)2A |
| GH05018-0810 | 18rings | 8X10A+10X(signal)2A | GH05018-1008 | 18rings | 10X10A+8X(signal)2A |
| GH05018-1206 | 18rings | 12X10A+06X(signal)2A | GH05018-1404 | 18rings | 14X10A+4X(signal)2A |
| GH05018-1602 | 18rings | 16X10A+2X(signal)2A | GH05024-2400 | 24rings | 24X10A |
| GH05024-0024 | 18rings | 24X(signal)2A | GH05024-0618 | 24rings | 6X10A+18X(signal)2A |
| GH05024-1212 | 18rings | 12X10A+12X(signal)2A | GH05024-1806 | 24rings | 18X10A+6X(signal)2A |
| GH05036-3600 | 36rings | 36X10A | GH05036-0036 | 236rings | 36X(signal)2A |
| GH05036-0630 | 36rings | 6X10A+30X(signal)2A | GH05036-1224 | 36rings | 12X10A+24X(signal)2A |
| GH05036-1818 | 36rings | 18X10A+18X(signal)2A | GH05036-2412 | 36rings | 24X10A+12X(signal)2A |
| GH05036-3006 | 36rings | 30X10A+6X(signal)2A | GH05042-4200 | 42rings | 42X10A |
| GH05042-0042 | 42rings | 42X(signal)2A | GH05042-0636 | 42rings | 6X10A+36X(signal)2A |
| GH05042-1230 | 42rings | 12X10A+30X(signal)2A | GH05042-1824 | 42rings | 18X10A+24X(signal)2A |
| GH05042-2418 | 42rings | 24X10A+18X(signal)2A | GH05042-3012 | 42rings | 30X10A+12X(signal)2A |
| GH05042-3606 | 42rings | 36X10A+6X(signal)2A | GH05048-4800 | 48rings | 48X10A |
| GH05048-0048 | 48rings | 48X(signal)2A | GH05048-0642 | 48rings | 6X10A+42X(signal)2A |
| GH05048-0642 | 48rings | 6X10A+42X(signal)2A | GH05048-1236 | 48rings | 12X10A+36X(signal)2A |
| GH05048-1236 | 48rings | 12X10A+36X(signal)2A | GH05048-1830 | 48rings | 18X10A+30X(signal)2A |
| GH05048-2424 | 48rings | 24X10A+24X(signal)2A | GH05048-3018 | 48rings | 30X10A+18X(signal)2A |
| GH05056-5600 | 56rings | 56X10A | GH05056-0056 | 56rings | 56X(signal)2A |
| GH05056-0650 | 56rings | 6X10A+50X(signal)2A | GH05056-1244 | 56rings | 12X10A+44X(signal2A |
| GH05056-1838 | 56rings | 18X10A+38X(signal)2A | GH05056-2432 | 56rings | 24X10A+32X(signal)2A |
| GH05056-3620 | 56rings | 36X10A+20X(signal)2A | GH05056-4808 | 56rings | 48X10A+8X(signal)2A |
| GH05072-7200 | 72rings | 72X(signal)2A | GH05072-0072 | 72rings | 72X(signal)2A |
| GH05072-1260 | 72rings | 12X10A+60X(signal)2A | GH05072-2448 | 72rings | 24X10A+48X(signal)2A |
| GH05072-3042 | 72rings | 30X10A+42X(signal)2A | GH05072-3636 | 72rings | 36X10A+36X(signal)2A |
| GH05072-4824 | 72rings | 48X10A+24X(signal)2A | GH05072-3636 | 72rings | 36X10A+36X(signal)2A |
| GH05072-6012 | 72rings | 60X10A+12X(signal)2A | GH05072-9600 | 96rings | 96X10A |
| GH05096-0096 | 96rings | 96X(signal)2A | GH05096-1284 | 96rings | 12X10A+84X(signal)2A |
| GH05096-2472 | 96rings | 24X10A+72X(signal)2A | GH05096-3660 | 96rings | 36X10A+60X(signal)2A |
| GH05096-4848 | 96rings | 48X10A+48X(signal)2A | GH05096-6036 | 96rings | 60X10A+36X(signal)2A |
| GH05096-7224 | 96rings | 72X10A+24X(ÐźÅ)2A |
