GH012 Through Bore Slip Ring

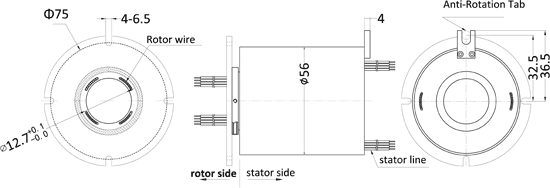

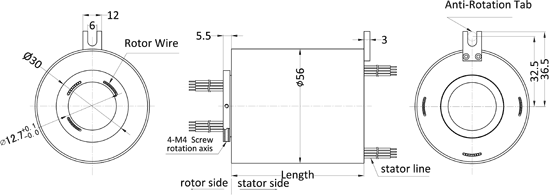

Download CenterSlip RingsGH012 standard through bore slip ring with bore size12.7mm(suit for any bore size<=12.7mm)
OD56mmAll aluminum alloy structure integral precision conductive slip ring to support the signal(2A),
10A, multiplying power *10A,voltage250VAC/VDC. bore size 12.7mm,OD: 56mm
High precision rotation, more stable and longer life compare with other congeneric product
Contact materials using precious metals+Gold-plated superhard processing£¬small torque£¬steady running £¬long life ,Small fluctuations in resistance, small contact resistance
Ensure excellent transmission performance, typical applications include automation equipment camera haeundae robot working rotary table.
| model# | total rings | current | model# | total rings | current |
|---|---|---|---|---|---|
| GH01202-0200 | 2rings | 2X10A | GH01202-0002 | 2rings | 2Xsignal(2A) |
| GH01203-0300 | 3rings | 3X10A | GH01303-0003 | 3rings | 3Xsignal(2A) |
| GH01203-0102 | 3rings | 1X10A+2Xsignal(2A) | GH01303-0201 | 3»· | 2X10A+1signal(2A) |
| GH01306-0600 | 6rings | 6X10A | GH01206-0006 | 6rings | 6Xsignal(2A) |
| GH01206-0204 | 6rings | 2X10A+4Xsignal(2A) | GH01206-0402 | 6rings | 4X10A+2Xsignal(2A) |
| GH01212-1200 | 12rings | 12X10A | GH01212-0012 | 12rings | 12Xsignal(2A) |
| GH01212-0210 | 12rings | 2X10A+10Xsignal(2A) | GH01212-0408 | 12rings | 4X10A+8Xsignal(2A) |
| GH01212-0606 | 12rings | 6X10A+6Xsignal(2A) | GH01212-0804 | 12rings | 8X10A+4Xsignal(2A) |
| GH01212-1002 | 12rings | 10X10A+2Xsignal(2A) | GH01218-1800 | 18rings | 18X10A |
| GH01218-0018 | 18rings | 18Xsignal(2A) | GH01218-0216 | 18rings | 18X10A+16X(signal)2A |
| GH01218-0414 | 18rings | 4X10A+14X(signal)2A | GH01218-0612 | 18rings | 6X10A+12X(signal)2A |
| GH01218-0810 | 18rings | 8X10A+10X(signal)2A | GH01218-1008 | 18rings | 10X10A+8X(signal)2A |
| GH01218-1206 | 18rings | 12X10A+06X(signal)2A | GH01218-1404 | 18rings | 14X10A+4X(signal)2A |
| GH01218-1602 | 18rings | 16X10A+2X(signal)2A | GH01224-2400 | 24rings | 24X10A |
| GH01224-0024 | 18rings | 24X(signal)2A | GH01224-0618 | 24rings | 6X10A+18X(signal)2A |
| GH01224-1212 | 18rings | 12X10A+12X(signal)2A | GH01224-1806 | 24rings | 18X10A+6X(signal)2A |
| GH01236-3600 | 36rings | 36X10A | GH01236-0036 | 236rings | 36X(signal)2A |
| GH01236-0630 | 36rings | 6X10A+30X(signal)2A | GH01236-1224 | 36rings | 12X10A+24X(signal)2A |
| GH01236-1818 | 36rings | 18X10A+18X(signal)2A | GH01236-2412 | 36rings | 24X10A+12X(signal)2A |
| GH01236-3006 | 36rings | 30X10A+6X(signal)2A | GH01242-4200 | 42rings | 42X10A |
| GH01242-0042 | 42rings | 42X(signal)2A | GH01242-0636 | 42rings | 6X10A+36X(signal)2A |
| GH01242-1230 | 42rings | 12X10A+30X(signal)2A | GH01242-1824 | 42rings | 18X10A+24X(signal)2A |
| GH01242-2418 | 42rings | 24X10A+18X(signal)2A | GH01242-3012 | 42rings | 30X10A+12X(signal)2A |
| GH01242-3606 | 42rings | 36X10A+6X(signal)2A | GH01248-4800 | 48rings | 48X10A |
| GH01248-0048 | 48rings | 48X(signal)2A | GH01248-0642 | 48rings | 6X10A+42X(signal)2A |
| GH01248-0642 | 48rings | 6X10A+42X(signal)2A | GH01248-1236 | 48rings | 12X10A+36X(signal)2A |
| GH01248-1236 | 48rings | 12X10A+36X(signal)2A | GH01248-1830 | 48rings | 18X10A+30X(signal)2A |
| GH01248-2424 | 48rings | 24X10A+24X(signal)2A | GH01248-3018 | 48rings | 30X10A+18X(signal)2A |
| GH01248-3612 | 48rings | 36X10A+12X(signal)2A | GH01248-4206 | 48rings | 42X10A+06X(signal)2A |
