QD-F-2PG Pneumatic-Electrical Slip Ring/Rotary Joint
Download CenterRotary JointQD-F-2PG pneumatic-electrical slip ring rotary joint Support 2 passage gasŁ¨liquidŁ© support 1-96power rings
Customized tube size and connect type - NPT, Rc BSPT, O-ring Face Seal
Coaxial cable, power line thermocouple signal mix
Lead specification: 2A/signal -> AWG28, 4A -> AWG22, 8A -> Awg16, 15A -> Awg14, color code.
Such as product life and rotation speed and temperature and humidity parameters are closely related. Electrical noise and working speed, electric current and voltage are closely related
Any other requirements, contact: technical@erotaryjoint.com

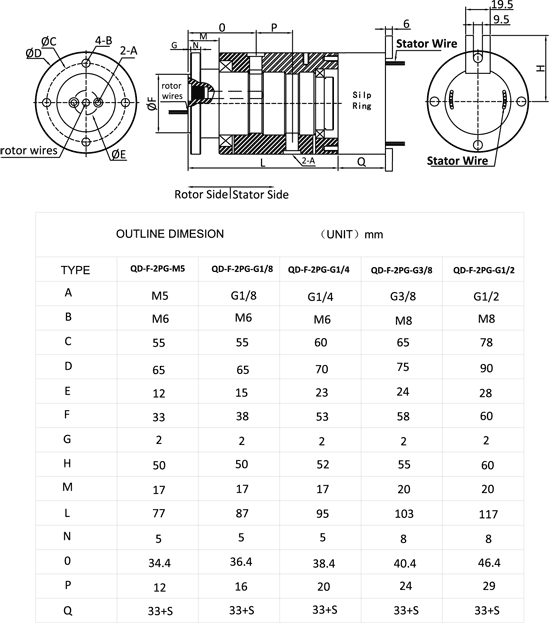

| model# | power/signal | passage | meida | |
|---|---|---|---|---|
| QD-F-2PG(2passage gas 1-96 power rings)-M5 | 2A 5A 10A | 2passage gas(liquid) | ¦µ4 ¦µ6 | wtaer gas oil signal data current ethernet |
| QD-F-2PG(2passage gas 1-96 power rings)-G1/8 | 2A 5A 10A | 2passage gas(liquid) | ¦µ6¦µ8 | wtaer gas oil signal data current ethernet |
| QD-F-2PG(2passage gas 1-96 power rings)-G1/4 | 2A 5A 10A | 2passage gas(liquid) | ¦µ10¦µ12 | wtaer gas oil signal data current ethernet |
| QD-F-2PG(2passage gas 1-96 power rings)-G3/8 | 2A 5A 10A | 2passage gas(liquid) | ¦µ14¦µ16 | wtaer gas oil signal data current ethernet |
| QD-F-2PG(2passage gas 1-96 power rings)-G1/2 | 2A 5A 10A | 2passage gas(liquid) | ¦µ18¦µ25 | wtaer gas oil signal data current ethernet |
The electrical slip ring/swivel order instructions
Rotary joint product specifications for the standard model size, if need other requirement according to your requirements
The connection method of customization, including circuit number, channel number, size requirements, as well as the requirement of the shape
Rotary joint work speed, temperature, pressure, etc
Connection mode, size requirements, channel number, material requirements, medium type, and shape
Can be selectively used with conductive slip ring, need to provide electricity, current size, the dielectric type
Rotary joint choice: type high speed rotary joints, high temperature type rotary joints, high pressure type rotary joint
Medium type options: pneumatic rotary joint, vacuum rotary joints, hydraulic rotary joint, hot and cold water use rotary joint
need shielding or notŁ¬
