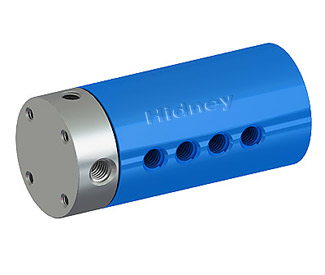

DT-4PG Rotary Joint
Download CenterRotary JointDT-4PG rotary joint designed to save space fot the customer's equipment
Standard rotary joint are used to Pneumatic and hydraulic services which support gas,oil,water,and Chemicals
Screws for muli-media transmission:M5 G1/8 G1/4 G3/8 G1/2 G3/4 can be designed
High pressure rotary joint,high temperature rotary joint, high speed rotary joint, max pressure reach to 15000PSI
Max speed reach to 8000RPM,max speed reach to 460ˇăC,support by the imported high precision bearing
Using compact design style, saving space, belong to a small toqure rotaru joint.

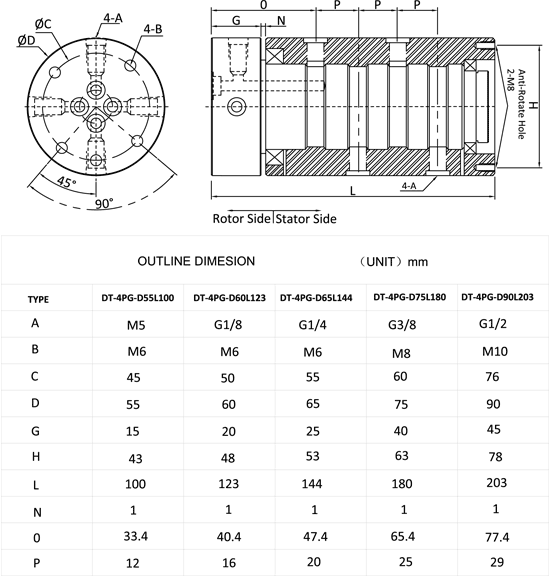

| model# | screws | passage | tube diameter | media | slip ring |
|---|---|---|---|---|---|
| DT-4PG-D55L100 | M5 | 4passage | ¦µ4 ¦µ6 | water gas oil | option for |
| DT-4PG-D60L123 | G1/8 | 4passage | ¦µ6¦µ8 | water gas oil | option for |
| DT-4PG-D65L144 | G1/4 | 4passage | ¦µ10¦µ12 | water gas oil | option for |
| DT-4PG-D75L180 | G3/8 | 4passage | ¦µ14¦µ16 | water gas oil | option for |
| DT-4PG-D90L203 | G1/2 | 4passage | ¦µ18¦µ25 | water gas oil | option for |
Order Guidance
Above rotary joint are standard specification, it could also be customized according to your requirements
CustomizedŁ¬including connect ways, total wires, passage number, size requirements, and related shape requirements
Requirements for the rotate speed, temperature, pressure,and so on
Connect ways,size requirements, passage number,material requirement, media type, shape requirement
Optional used with slip ring should provide total wires,current,media type.
Option for rotary joint:high speed rotary joint,high temperature rotary joint, high pressure rotary joint
Option for media type:Pneumatic rotary jointŁ¬Vacuum rotary jointsŁ¬ZHGTFŁ¬Hot and cold water rotary joint
Hidney high quality rotary joint effectively replaced SMC rotary joint, import rotary joint
